Goddards Green 2020
Our newest case study is Goddards Green STW. Southern Water required new odour containment covers to various tanks and chambers on the site to reduce odour omissions to facilitate a large housing development in the area. GallifordTry, the main contractor, selected Corporate Engineering following a competitive bidding process. Corporate’s design proposals were considered to be the most appropriate for the site and were considered to be the most competitive and technically appropriate.
Corporate Engineering's values align with those of GallifordTry - with GT making the statement; “We assess and address sustainability impacts across six fundamental areas: health and safety, environment and climate change, our people, communities, clients and supply chain"
On this project, Corporate Engineering supplied the following covers:
Primary Settlement Tanks 2 x 20m diameter beam and infill covers
PST De-sludge chamber 2.4m dia Heavy Duty pump chamber cover
PST Collection chamber 2.5m x 2.5m Heavy Duty cover
Anoxic Distribution chamber 4.0m x 2.7m Heavy Duty cover
Sludge Reception Tank 6.3m dia Beam and Infill cover
Sludge Hopper Pump Hatches 2 no. 4.0m x 1.2m hinged covers
Inlet Works Refurbishment of existing covers
and addition of a large GRP enclosure to the Inlet Chamber
Large GRP enclosure to the Inlet Chamber
Primary Settlement Tanks
Prior to the project, the PSTs were fitted with conventional rotating half-bridge scrapers. These were replaced with fixed half-bridges to allow GRP covers to be fitted underneath. Fixed GRP covers were chosen as they were considered to be less complex and more robust than rotating designs. Operations, such as launder and scum-box cleaning, are easier to carry out with a fixed cover design.
The beam and infill covers have a low profile and were designed to fit under the GMS bridges. The bridges were then isolated from the corrosive atmosphere created by the tank contents.
Covers were fitted with Heavy Duty platforms and walkways with GMS handrailing to allow operations personnel to access the peripheral launder, scumbox and central diffusion drum.

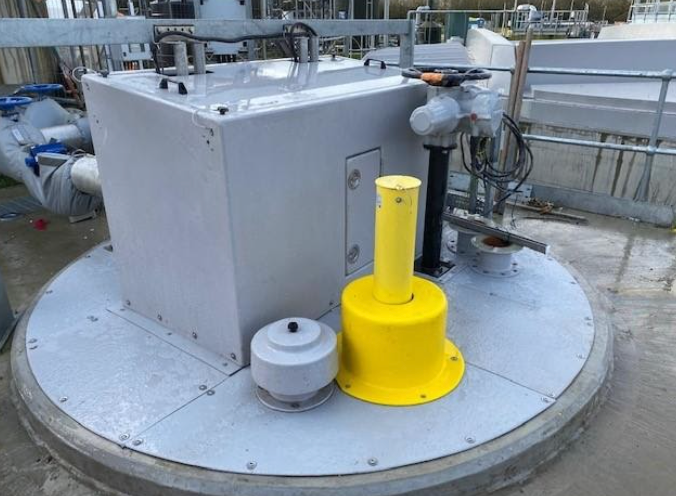

The GRP de-sludge chamber cover replaced GMS open mesh decking to create an odour seal. The cover incorporated a large hatch to allow the deployment of the submersible pumps. The cover was designed to fit around existing penstocks, valves and davit socket.
The circular GRP beam and infill cover was required to replace a failed pitched cover. The new cover was designed to incorporate the inspection hatch and sensor mounting flanges that were fitted to the original cover but were difficult for the site personnel to access safely. This necessitated the supply and installation of a new GMS access platform that was also part of Corporate Engineering’s scope of supply.

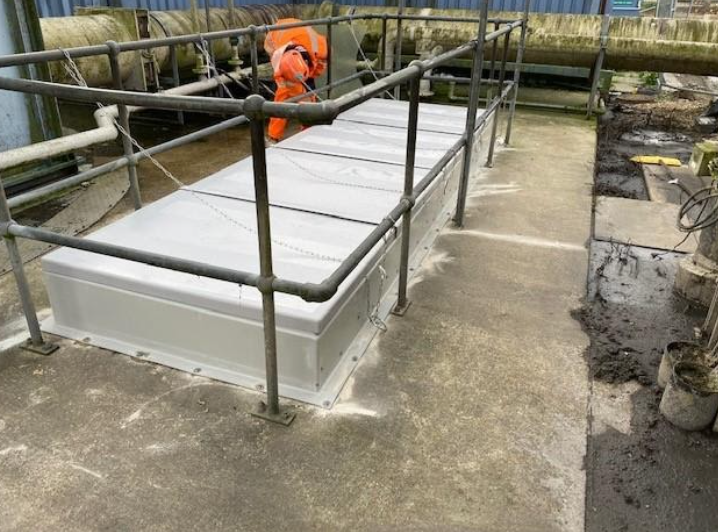

The client needed weatherproof covers over apertures in a concrete slab that were used to remove large pumps from a dry-well. The covers consisted of lightweight hinged panels mounted on a GRP upstand that were easily operated from behind the safety handrailing.
As well as general repair and refurbishment of the existing GRP odour covers, CEL were asked to provide a suitable cover to the inlet chamber that could accommodate large effluent plumes emitted from the inlet bell mouths during pumping operations. CEL’s solution was to design a removable enclosure that provided additional headroom for the plumes that had damaged the original low-level cover panels.
